Garmin LiveScope™ XR System

Product Info

Garmin LiveScope™ XR System With GLS 10™ and LVS62 Transducer

Designed for coastal and open-water fishing, extending the reach and clarity of real-time sonar imagery

Key Features & Capabilities

• Extended Sonar Range

  • Up to 500 ft (152 m) in freshwater

  • Up to 350 ft (106 m) in saltwater

  • This marks a notable enhancement over earlier LiveScope models

• Flexible Viewing Modes

  • Long View with Reverse Range Offset—optimizes screen space to display distant targets.

  • Close View with Compress Range—focuses on nearby activity while keeping further objects visible

• Multiple Display Perspectives

  • Forward Mode: scans ahead of the boat with a slight downward tilt.

  • Down Mode: looks directly beneath the boat.

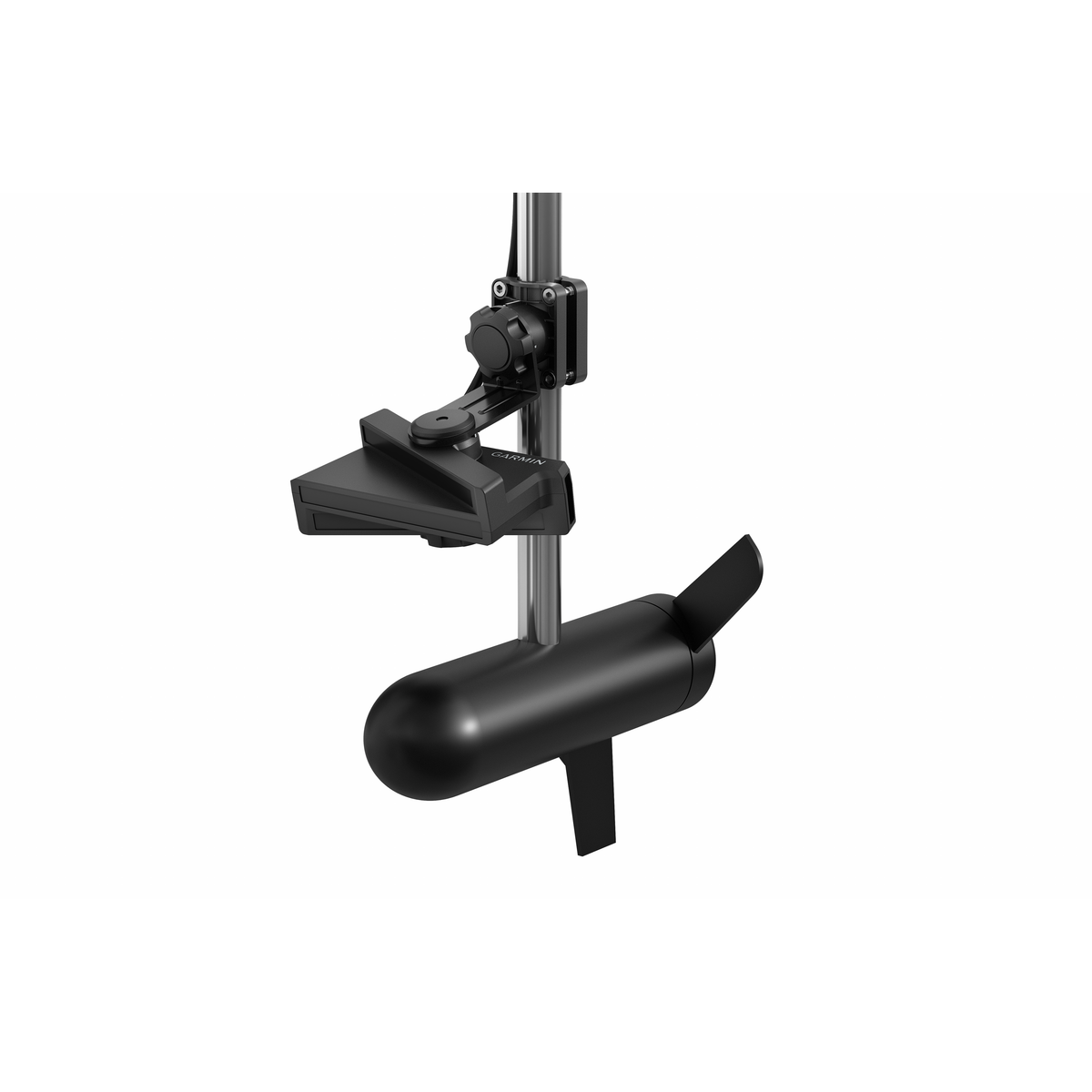

  • Perspective Mode: simulates a top-down view using the included mount

• Image Stabilization

  • Built-in stabilization keeps sonar images steady and usable even in choppy waters

• Vivid Color Palettes

  • Choose from seven high-contrast options like Aqua, Caribbean, Lava, etc., designed to make targets and structures stand out

Technical Specifications

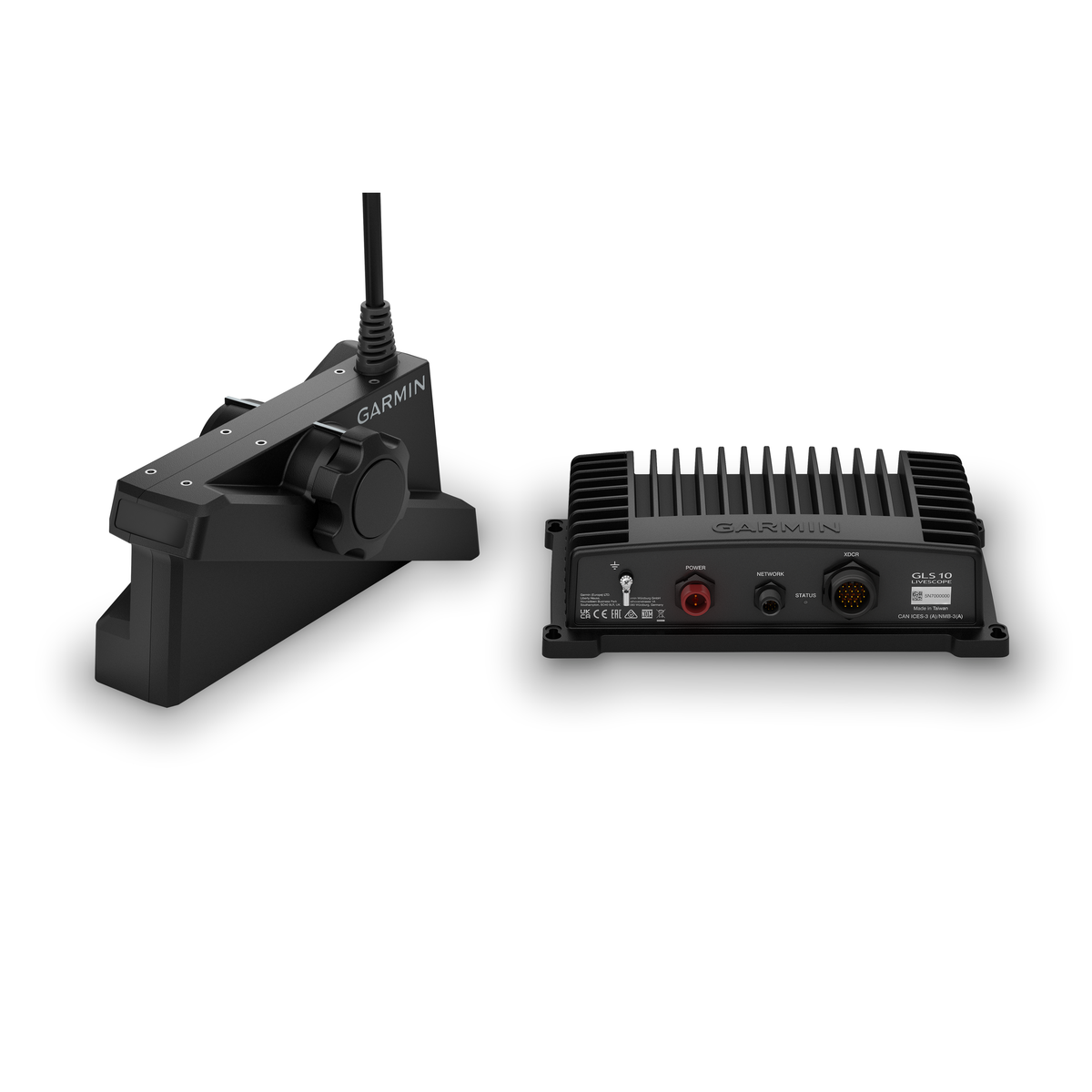

GLS 10 Sonar Black Box

• Size: ~9.7" × 5.9" × 2.6" (24.5 × 14.9 × 6.5 cm)

• Weight: around 4.3 lbs (2.0 kg)

• Waterproof: Rated IPX7

• Temperature Specs: operates between –15 °C to +70 °C

• Power: 10–32 V input; typical use 21 W, max 58 W; fuse: 7.5 A

• Transmit Power: 500 W; has one Garmin Marine Network port

LVS62 Transducer

• Physical Dimensions: approx. 8.2" × 3.98" × 2.76" (20.8 × 10.1 × 7.0 cm)

• Cable Length: 20 ft

• Beamwidth: 20° × 135°

• Operating Frequency: 265–550 kHz

• Features Attitude Heading Reference System (AHRS) for image stabilization

• Target separation and exact specs unspecified, but optimized for clear, real-time imaging up to max depths

What’s Included in the Box

• GLS 10 sonar black box

• LiveScope XR LVS62 transducer (20 ft cable included)

• Perspective mount (designed specifically for the XR model)

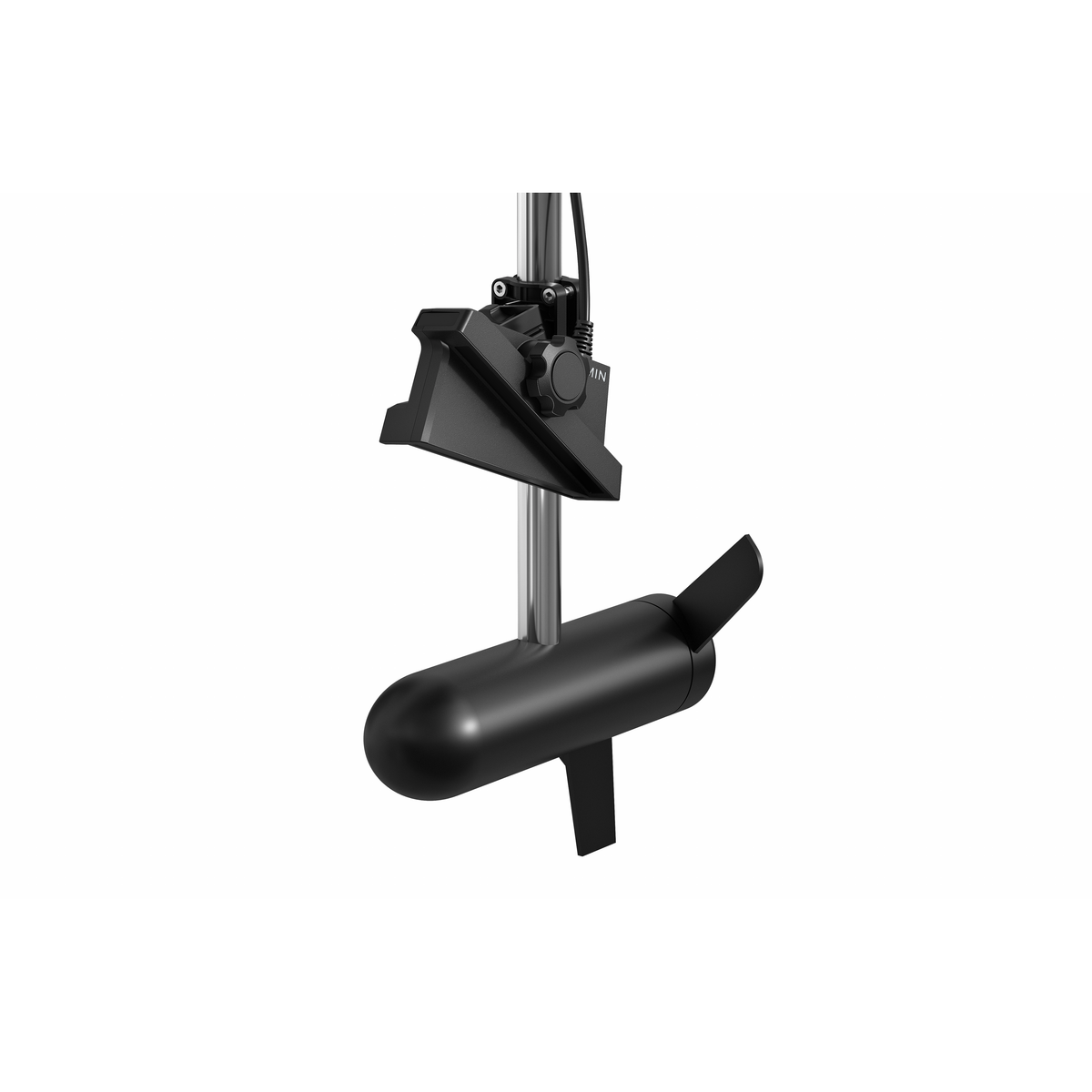

• Trolling motor barrel mount

• Shaft mount

• Power cable

• 2 m Garmin Marine Network cable (small connector)

• Network adapter cable

• Documentation (user guide, etc.)
