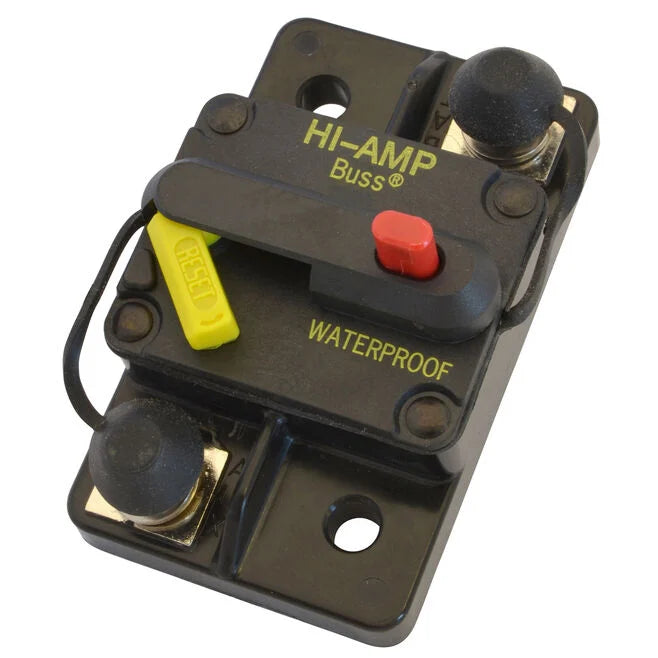

CB285 High Amp Waterproof Circuit Breaker, 40 Amp

Product Info

EATON CB285 High Amp Waterproof Circuit Breaker, Flush Mount

This circuit breaker is the required amperage for the Garmin Force Current

The Bussmann series is a flush mount high-amp circuit breaker designed specifically for marine applications. Part of the comprehensive Bussmann series of circuit protection solutions. It provides both short-circuit and overload protection to safeguard against damage to electrical circuit, including the engine room of gasoline powered boats.
This high-quality circuit breaker is known for its reliable performance in harsh marine environments, ensuring the safety and operational integrity of electrical systems on board. It is weatherproof, includes a push-to-trip button, features M6 threaded studs and stainless steel hardware.
The CB285F-100 marine rated circuit breaker is a Type III (type 3) breaker which means it will remain tripped (in the OFF position) until the user manually resets it.

Key Features

• Maximum Voltage: 48V DC
• Combine switching and circuit protection into single waterproof and sealed switch
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Interrupt Capacity: 3,000A @ 48V DC
• Approvals: SAE J1625, ABYCE-11, CE, SAE J1171 (Ignition Protected), IP69
